From raw stock to dispatch-ready, six integrated disciplines carry every component through tight-tolerance machining and full dimensional validation.
Products made
500+
Sectors served
5
Tolerance
±0.005mm
Sectors served/ 02.1
Five industries. One drawing set.
Every industry hands us a different drawing — the discipline that machines them never changes. Leaf through the set.
SHIVAM PRECITECH TOOL ROOMS PVT. LTD. · VADODARASECTOR FILE · DO NOT SCALE
01
Pharma & Medical Technology
“A pharma line is only as clean as its worst surface.”
GENERAL NOTES:
Pharma machinery lives by its surfaces. We machine and polish product-contact components in specified stainless grades — along with fabrication and machining components to be used in pharma product machinery where the finish itself is the specification.
All critical features verified by measurement before release — mirror-grade polishing · product-contact finishes held to spec.
SHIVAM PRECITECH TOOL ROOMS PVT. LTD. · VADODARASECTOR FILE · DO NOT SCALE
02
Energy & Cryogenics
“At cryogenic temperatures there is no such thing as a small leak.”
GENERAL NOTES:
Cryogenic pumps and process systems run at temperatures where materials change their manners. We machine stepped shafts, seal housings and process components that stay dimensionally honest from ambient to deep cold.
All critical features verified by measurement before release — seal lands and bearing fits held to ±0.005 mm.
SHIVAM PRECITECH TOOL ROOMS PVT. LTD. · VADODARASECTOR FILE · DO NOT SCALE
03
Bearings & Motion
“Every rotation of the client's machine repeats our geometry.”
GENERAL NOTES:
We build precision tooling for high-performance bearing manufacturing machines — the tools that make the machines that make motion possible. Race geometry demands profiles that repeat to the micron, batch after batch.
All critical features verified by measurement before release — roundness, flatness, circularity, concentricity and dimentional accuracy verified on cmm.
SHIVAM PRECITECH TOOL ROOMS PVT. LTD. · VADODARASECTOR FILE · DO NOT SCALE
04
Flow & Process
“A valve is judged on the day it has to close.”
GENERAL NOTES:
Pump, valve and fluid-handling componentry — bodies, plugs, seats and sleeves machined for tight shut-off and long service life. Sealing faces are machined, ground and validated before dispatch.
All critical features verified by measurement before release — sealing faces ground and finished to drawing intent.
SHIVAM PRECITECH TOOL ROOMS PVT. LTD. · VADODARASECTOR FILE · DO NOT SCALE
05
Heavy Engineering
“On heavy assemblies, an error compounds by the tonne.”
GENERAL NOTES:
High-critical components for industrial systems — fixtures, flanges, housings and fabricated-then-machined weldments handled up to five tonnes in-house. Big parts, small tolerances.
All critical features verified by measurement before release — machined flat and parallel across large faces.
SHEET 01 / 05
Case file/ 02.2
How a process earns its keep.
A real improvement from our floor — documented the way it happened: the route, the problem, the change, the result.
CS-01

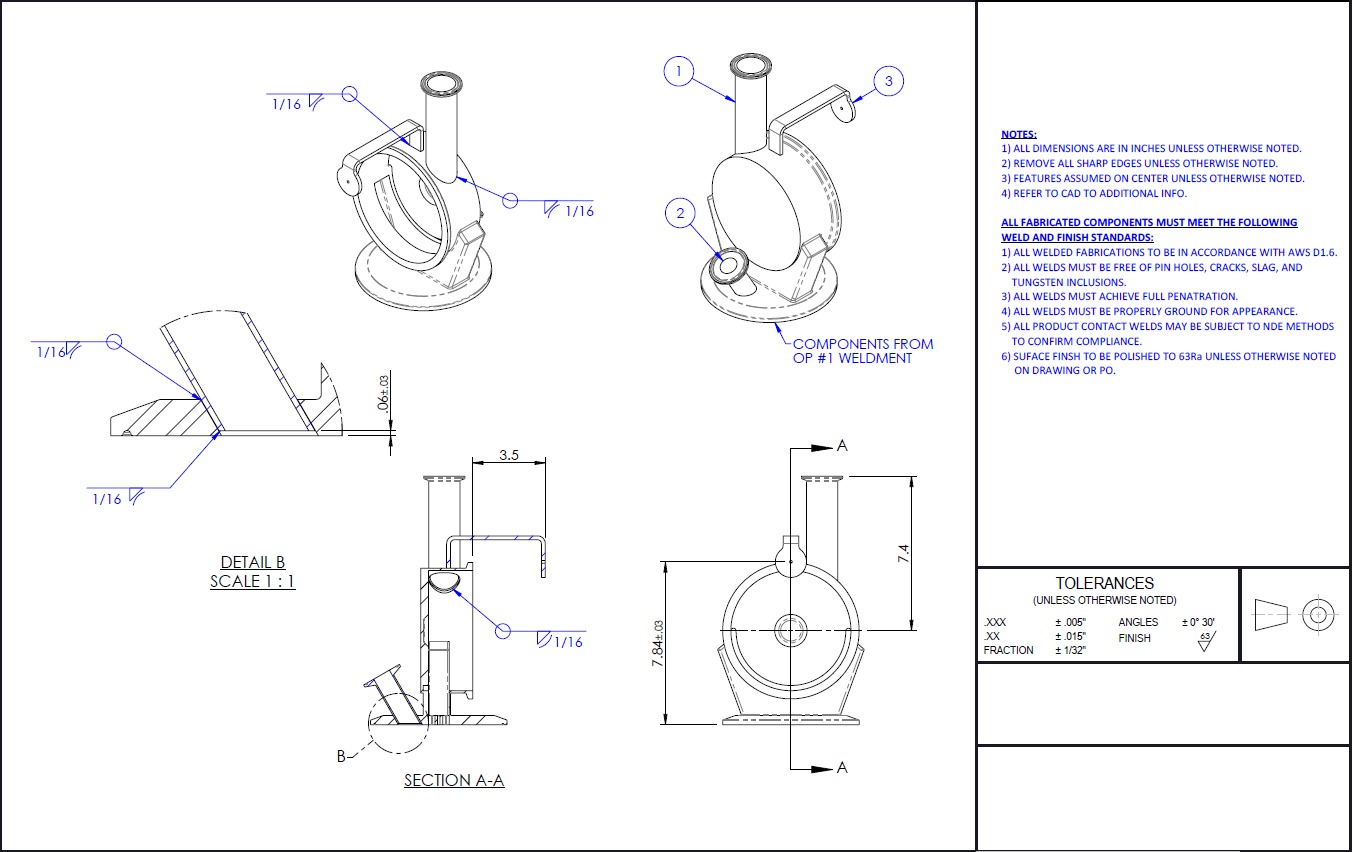

Pharma Housing
Inspected · packed · shipped to export specification
Customer drawing · title block withheld
AWS D1.6 weld standard
Polished to specified finish
Machined faces held to drawing tolerance
The housing that fought the arc.
Manufacture the Pharma Housing to the customer's drawing and export quality requirements — dimensional accuracy, AWS D1.6 weld quality and the specified polished finish.
01Raw material inspection
02Laser cutting
03Bending
04Fixture fit-up
05TIG (argon) weldingHeat distortion · joints drifting out of dimension
06Machining & polishingExtra finishing every unit, to recover the spec
07Final inspection
08Export packing
The arc did its job and undid the part. TIG's heat input distorted the bent components and pulled weld joints out of dimension — every housing needed extra machining and polishing just to get back to the drawing. Production time and rework climbed with each unit.
TIG (argon) weldingLaser welding
The joints were re-engineered alongside the process — where possible, features are now machined from solid material so the seam simply doesn't exist. No departure from the customer's design intent.
Minimal heat input — distortion controlled at the source
Bend accuracy held without deformation
Cleaner, more consistent weld joints
Polishing and finishing time cut significantly
Rework eliminated from the route
Every drawing and export requirement met
Works envelope/ 02.3
The largest work each line can hold.
Conventional latheØ 750 × 2,000 mmswing × length
CNC turningØ 600 × 1,000 mmswing × length
VMC milling1,500 × 800 × 800 mmX × Y × Z
Handling5-tonneEOT crane, in-house
Materials/ 02.4
Grades we machine, on register.
The grades we machine day in, day out. Every bar and blank on the floor carries a colour-coded identification tag — traceable from the material store to dispatch.
MT-01
Alloy & Carbon Steels
EN 3A
EN 8
EN 9
EN 19
EN 24
EN 41B
EN 47
SAE 8620
MT-02
Bearing Steels
EN 31
SAE 52100
EN 26
MT-03
Tool & Die Steels
D2
OHNS
WPS
MT-04
Stainless Steels
SS 304
SS 316L
SS 17-4PH
MT-05
Structural Steels
E 250 BR
E 350 BR
MT-06
Non-Ferrous
Aluminium alloys
Brass
Copper
Aluminium Bronze
Need a grade that isn't listed? We source against customer specification, with mill test certificates on request.
Catalogue/ 02.5
Browse the full document.
View our product and capability catalogue online, or download a copy to keep on file.
PDF
Product catalogue
Our full capability & product catalogue.

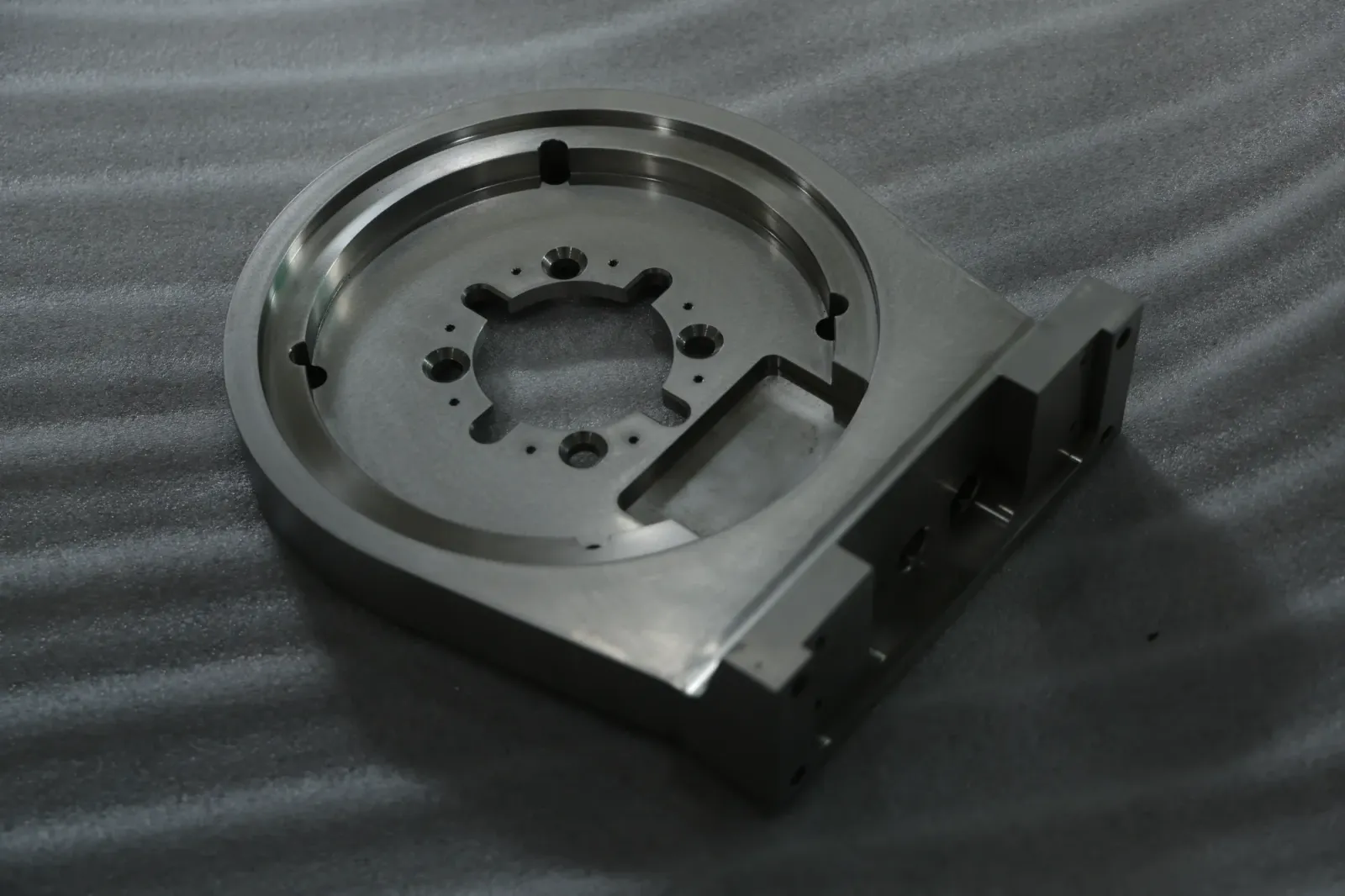

A selection of components built to client drawings — machined, finished and inspected to each client's quality requirements.
Export consignments are packed to survive the journey — protected against moisture, dust, shock and vibration, then marked and documented to international standards.
01
Protective packing
Bubble wrap, foam, air cushions or thermocol as the component demands — guarding against moisture, dust, shock, vibration and breakage.
02
Inner packing
Each item individually wrapped, separators between delicate faces, and every void filled so nothing moves in transit.
03
Outer packing
Export-quality corrugated cartons, wooden crates, or plastic and metal containers — sealed with heavy-duty tape, strapped or shrink-wrapped.
04
ISPM-15 compliance
Wooden pallets and crates are heat-treated or fumigated to International Standards for Phytosanitary Measures No. 15.
05
Marking & labelling
Exporter and consignee, product description, quantity, gross and net weight, dimensions, country of origin and handling marks on every package.
06
Packing list
Invoice number, package count, product details, weights, dimensions, marks and numbers — documentation that clears customs cleanly.
Six disciplines/ 02.7
An integrated manufacturing line.
Each capability is governed by drawing intent and verified by measurement before a part advances.
01CNC Precision MachiningHigh-accuracy turning and milling operations for tight tolerances, stable geometry, and repeatable batch quality.
02Multi-Axis Milling & ProfilingComplex contours, pockets, and critical interfaces machined through advanced multi-axis process planning.
03Metrology & InspectionIn-process and final-stage inspection validates dimensional accuracy, concentricity, and surface quality.
04Material & Process EngineeringMaterial selection, process routing, and treatment coordination aligned to application loads and lifecycle expectations.
05Gauging & Dimensional ValidationCustom gauging and structured validation workflows ensure each part meets drawing intent before release.
06Finishing, Marking & PackagingSurface finishing, identification marking, and industrial packaging handled with traceability and dispatch-readiness.
Made to drawing
Every component is engineered to your specification.
We manufacture to print. Send us a drawing or sample and our process engineers will
return a manufacturing plan, tolerance review and quotation.
